SPECIFICATIONS:

Item No. Description Quantity (Set) Power (HP)
@

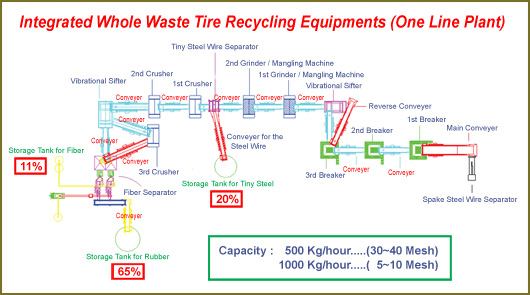

Integrated Whole Waste Tire Recycling Equipments

ONE LINE 1,490.50

Treating Capcity (Volumes ) of Waste Tires: 4~5 Ton/hour

1

Pre-treatment:

@ @
@ (1)

Spoke Steel Wire Separator

@ @
@ @

15 HP For Tire Diameter : under 1100mm

2 30
@ @

7.5HP For Tire Diameter : under 730mm

4 30
@ (2)

Oil Hydraulic Cutter x 5 HP

1 5
2

Main-treatment:

@ @
@ (1)

1st Super Powerful Breaker

1 300
@ @

Model No. : SP-520/6030, Motor 300HP

@ @
@ @

Blades Thickness : 60mm

@ @
@ @

Blades QTY : 30 pcs

@ @
@ (2)

2nd & 3rd Super Powerful Breaker

2 400
@ @

Model No. : SP-420/3040, @Motor 200HP

@ @
@ @

Blades Thickness : 30mm

@ @
@ @

Blades QTY : 40 pcs

@ @
@ (3)

Vibrational Sifter x 4 HP

2 8
@ (4)

1st & 2nd Grinder(Mangling Machine) @Motor 150 HP

2 300
@ (5)

Tiny Steel Wire Separator (Magnetic Extractor) x 3HP

1 3
@ (6)

Storage Tank for Tiny Steel Wire

1 X
@ (7)

1st, 2nd & 3rd Milling, @Motor 125HP

3 375
@ @

500 kg/hour (30~40 Mesh)

@

-

@ @

1000 kg/hour (5~10 Mesh)

@ -
@ (8)

Fiber Separator x 7.5HP

1 7.5
@ (9)

Storage Tank for the Fiber (Fluffed Cotton-Batts)

1 X
@ (10)

Storage Tank for Rubber powder

1 X
@ (11)

Various Conveyors

14 32
3

Output Proporation of Treatment Results:

@ @
@

Pure Rubber Powder( separated & Finished) : 65%

@ @
@

Fiber-Fluffed Cotton-Batts (separated) : 11%

@ @
@

Steel Wires (separated) : 20%

@ @
@

Impurity (uncertain) : 4%

@ @
4

Electric control box of linking operation & running

1 @

Workers: 12 person at least/shift for entire plant

@ @
