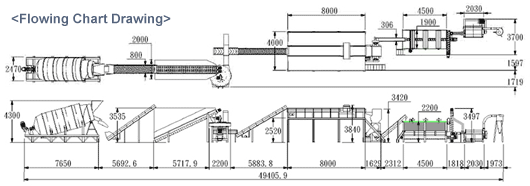

GRADE A CHIP TREATMENT - Complete Line for PET Bottle Recycling Plant
                                               Total Power 239.5HP (Capacity : 1 Ton/hour)

Equipments Design Criteria¡G

Item No. List of Machines and Equipments : (Item No.1~ No.12) Quantity
1

Input Belt Conveyor (SS-41)

1set
2

Lot Bottle Washing Machine (ARDM) (Chemical Sanitizer used) (SUS-304)

1set
2.1

Belt Conveyor (SS-41)

1set
3

Buffer/Retard Conveyor Tank (Volumes: 2 Ton)

1set
3.1

Double Screws Conveyor (SUS-304)

1set
4

De-Labeling Machine + Label Separating Blower

1set
5

Belt Conveyor (SS-41)

1set
6

Categorizing Platform for Sorting & Q.C. (SS-41)

1set
7

Waterfed Crusher : CM-600/1000

1set
8

U-Type Double Layers Screw Conveyor(with water cleaning pipes) (SUS-304)

1set
9

Floating/Cleaning Tank : 4.5M (L) (SUS-304)
Base Screw Diameter 250mm, Straight Screw Diameter 250mm
Output Screw Diameter 200mm, Rotary Drum with Blades 3 pieces

1set
10

Force Striking Automatic Hydro-Extractor : CW-2000HD + Cyclone (SUS-304)

1set

Rotary Diameter 650mm, RPM 1800, De-Water Distance 1700mm

11

Linking Operation Electricity Control Box

1PC
Other additional items : (1) ~(12) Included
12 (1)

Circular Water Pump

1set
(2)

Storage Tank for sanitizer

1PC
(3)

Device Unit for adding sanitizer

1set
(4)

Filtering Device Unit for liquids

1set
(5)

Spare Blades for Crusher

2set
(6)

Air compressor

1set
(7)

Machines' Drain Pipes Installation

1Form
(8)

Hot Water Tank for supplying hot water (Hot Water Input Stainless Pipes Installation included)

1PC
(9)

Clean Water Tank for supplying clean water, (Clean Water Input PE Pipes Installation included)

1PC
(10)

Storage Tank for packing

1PC
(11)

Oven for inspection use only

1PC
(12)

Cables/Wires' Connection between Machines and PLC Control Box

1Form
The below items (1) ~ (6) are to be Buyerself-provided
13 (1)

Metal detector (if user needed and its additional cost is to be added)

1set
(2)

Boiler (Stream Oven) ---Steam Output Volume : 1.0 Ton (at least)

1set
(3)

Hot Water Stainless Pipes Materials for Stream Boiler

1set
(4)

Water Input/Output PE Pipes Materials for Machines

1set
(5)

System equipments of waste water treatment (Included the purifying water pools or tanks)

1Form
(6)

Civil Engineering Drainage Canal in Buyer's Plant

1Form

* Seller provides the prescription (know-how) of special sanitizer is included.
* Seller submits the special sanitizer of free charge for trial running only.
* Delivery: 120 working days after receipt of buyer's down payment or irrevocable L/C at sight.
